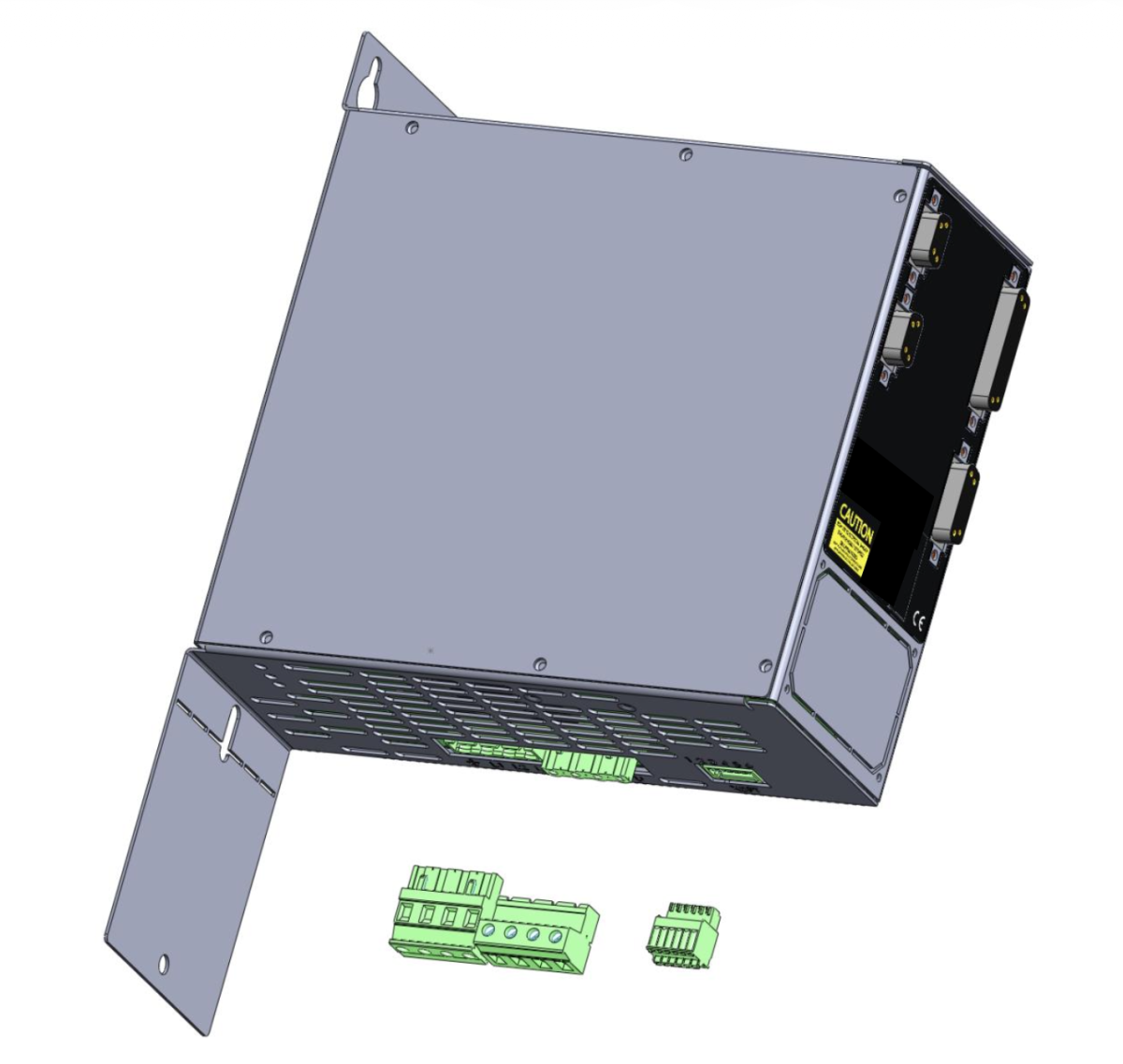

Universal Voltage High-Speed Spindle Drive
Compact high-performance spindle drive platform supporting universal mains operation from 110 to 420 VAC, engineered for high-frequency motor control, demanding industrial environments and high-speed applications up to 120’000 RPM.
ADX UV JET - Technical Highlights
- Universal AC input: 1 or 3 phase, 110 to 420 VAC
- Up to 7.2 kW rated apparent power depending on supply and model
- Motor output frequency up to 2000 Hz
- High-speed operation up to 120’000 RPM
- 10 or 20 kHz PWM switching frequency
- Encoder feedback interfaces
- Simulated encoder output for CNC integration
- Integrated braking resistor and DC link management
- Optional Safe Torque Off SIL-3 / PL d
- Built-in temperature-controlled fan
- Compact control-cabinet integration
- USB setup with ADX Drive Manager software
